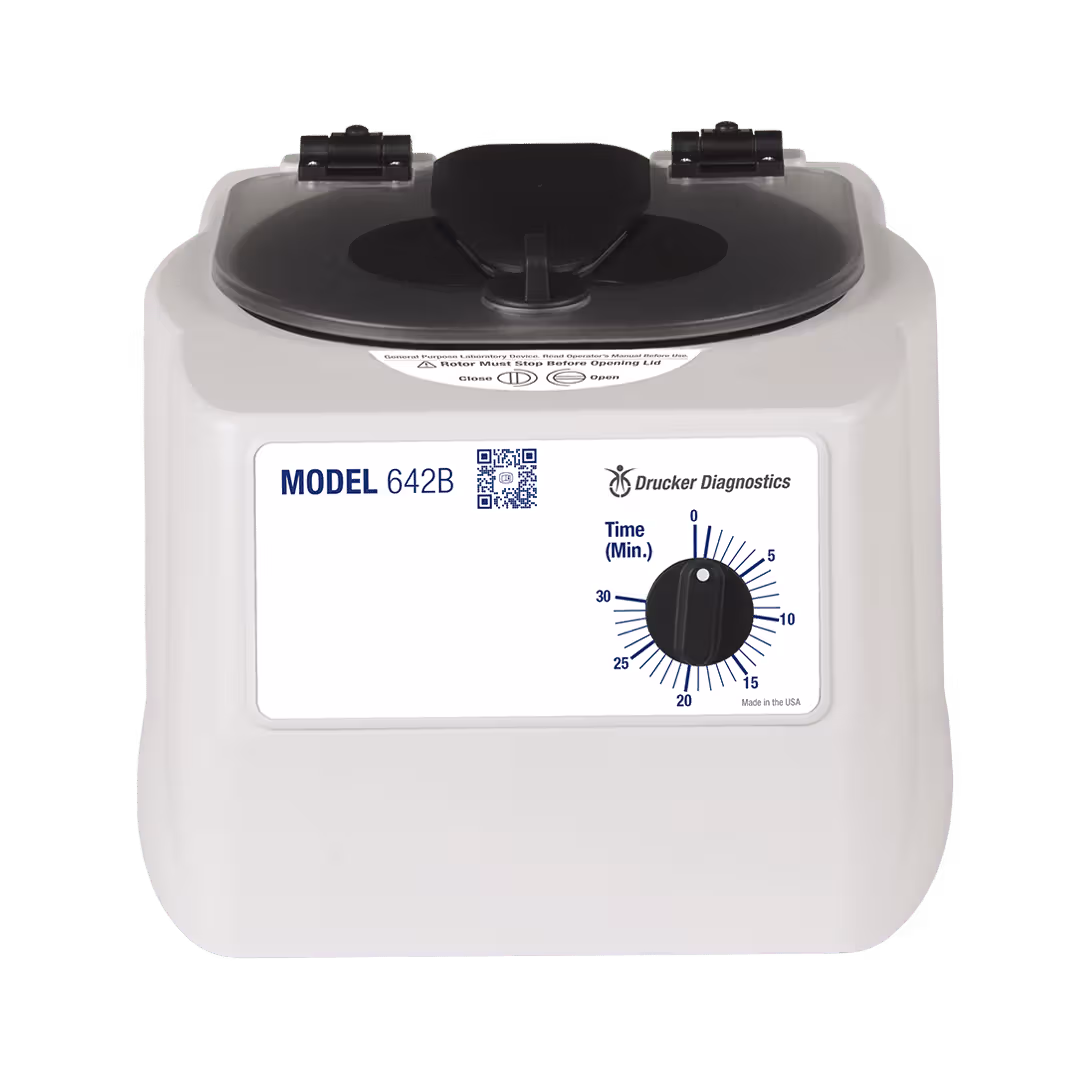

Drucker Diagnostics Centrifuge 642B Benchtop Centrifuge
The Model 642B is a horizontal centrifuge. The 642B maximizes bench space and sample integrity along with Drucker Diagnostics’ horizontal sample processing benefits.
Need Servicing?
we provide periodic maintenance & repairs — performed by our skilled professionals
- Mechanical Timer – 1 minute to 30 minutes allows for a wide range of applications
- Horizontal Rotor – High quality separations for up to six (6) tubes
- Tube Sizes – 0.5 mL to 10 mL; up to 17 mm x 100 mm
- Brushless AC Motor – Years of operation with no routine maintenance
- Quiet Operation – A double-encased motor and the “stability mount” design provides excellent imbalance protection
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Footprint – Compact design uses approximately 1 sq. ft. of counter space
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Side Walls – Glass fiber reinforced nylon and high impact polycarbonate provide dual layers of safety protection
- Regulatory Approvals – Certified to US and Canadian safety regulations and standards
Technical Specifications
Specifications are subject to change without prior notice due to continous improvements.
Please check with the manufacturer for updated information or contact us
| Speed Settings (Step Interval) | RPM |
| Max. Speed | 3380 RPM |
| Max. RCF | 1600 xg |
| Max. amount of tubes | 6 tubes |
| Sound Level | 65 dBA |
| Interchangable Rotors | Not Available |
| Imbalance Sensor | Not Available |
| 2-way speed Setting (RPM / RCF) | Not Available |
| Digital Time Setting | 10 min minutes |
| Voltage | 95 - 253 V AC ~ 50/60 Hz |
| Manufacturer | Drucker Diagnostics |
| Model | 642B |
| SKU | 00-016-009-001 |
External Dimensions
| Length | 360 mm |
| Width | 300 mm |
| Height | 230 mm |
| Weight | 5 kg |
